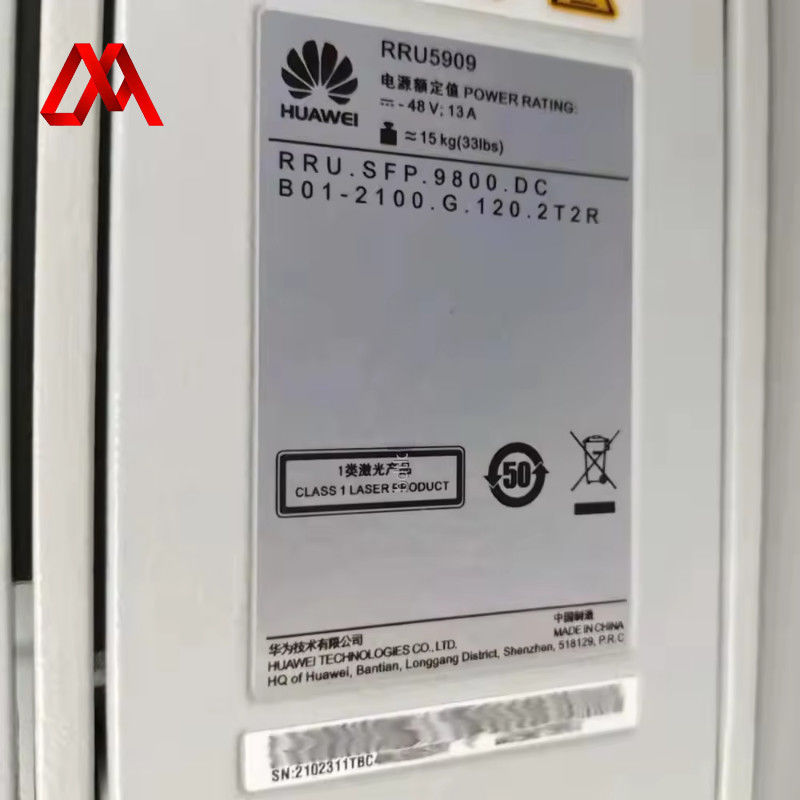

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU

브랜드 이름:	HUAWEI
모델 번호:	RRU5909-2100 미정
포장에 대한 세부 사항:	내부 폼 + 외부 카튼, 나무 프레임 포장
지불 조건:	L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

상세 정보

제품 설명

상세 정보

원래 장소:

제품 종류:

베이스밴드 유닛(BBU) 및 원격 무선 유닛(RRU)

전력 소비:

BBU: 250W, RRU: 300W

BBU: 442mm x 310mm x 86mm, RRU: 442mm x 310mm x 86mm

작동 온도:

BBU: -40°C ~ 55°C, RRU: -40°C ~ 55°C

지원된 표준:

3GPP LTE, 3GPP2 CDMA2000, IEEE 802.11, IEEE 802.3

최대 안테나 수:

BBU: 6, RRU: 2

5% ~ 95%(비응축)

BBU: 12kg, RRU: 12kg

지원되는 주파수 대역:

700MHz ~ 3800MHz

최대 출력 파워:

BBU: 20W, RRU: 40W

저장 온도:

BBU: -40°C ~ 70°C, RRU: -40°C ~ 70°C

전원 공급:

AC 또는 Dc

최대 캐리어 수:

BBU: 6, RRU: 2

인터페이스:

BBU: 2x GE, 2x SFP, 2x USB, 1x RS485, 1x E1, 1x GPS, 1x 1588v2, 1x 1PPS, 1x BITS, RRU: 2x CPRI, 1x S

공급 능력:

주당 2000pcs

강조하다:

48V huawei rru 5909

BTS huawei rru 5909

화웨이 5909 5G rru 라디오 단위

제품 설명

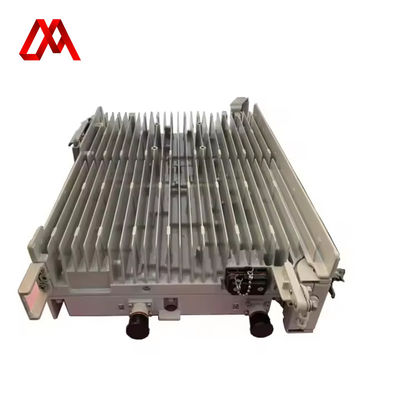

분해된 RRU, 사진이 RRU의 구성요소를 보여줍니다. 그래서 저는 이 사진을 여러분과 공유하고 싶었습니다.

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU 0

원격 전파 단위 (RRU): 신호 처리 장치, 전력 증폭기,그리고 두 개의 송신기가 탑의 높이 또는 케이블의 길이로 인해 발생하는 붕괴 문제로부터 신호를 치료하기 위해 신호를 증폭시키는 작업을 수행합니다..

기능

1- 베이스밴드 신호를 전송하고 수신합니다.

2- 라디오 주파수 신호를 조절하고 분해합니다.

3- 데이터 처리

4- 신호 강도를 증폭시키세요.

RRU 구성 요소

1-TRX & RX 보드:

- 운반기 위아래 변환 책임

- 변조 및 변조 해제 책임

- 지연 증가 조절

2- 전력 증폭기:

- 신호 증폭 책임

3- 전원 공급:

- RRU 보드에 전력을 공급하고 있어요

4-라디오 듀플렉서필터링:

- 수신 필터와 전송 듀플렉서

화웨이 RRU 시리즈

1-RRU3000 시리즈 모델

각종 용도 및 용량 및 용량 및 용량 및 용량, 용량 및 용량, 용량, 용량, 용량, 용량, 용량, 용량, 용량RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829,RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961,RRU3962, RRU3965, RUR3971, RRU3971a

2- RRU5000 시리즈모델들

부산광역시 광역지방자치단체, 부산광역시 광역지방자치단체RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909,RRU5909N, RRU5909s, RRU5935E

출력 전력 및 운반기 구성

표 1 3000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE (TDD)	RRU3168
RRU3201	2T2R	700	LTE (FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE (FDD)	RRU3203
RRU3220	2T2R	800	LTE (FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE (FDD)	RRU3220E
RRU3221	2T2R	2600	LTE (FDD)	RRU3221
RRU3222	2T2R	800	LTE (FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE (FDD)	RRU3229
RRU3230E	2T2R	1800	LTE (FDD),LTE (NB-IoT),LM	RRU3230E
RRU3232	4T4R	3500	LTE (TDD)	RRU3232
RRU3236E	2T2R	2300	LTE (TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE (FDD)	RRU3240
RRU3249	2T2R	700	LTE (FDD)	RRU3249
RRU3251	2T2R	2300	LTE (TDD)	RRU3251
RRU3252	4T4R	2300	LTE (TDD)	RRU3252
RRU3253	8T8R	2600	LTE (TDD)	RRU3253
RRU3256	4T4R	2300	LTE (TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE (TDD)	RRU3259
RRU3260	2T4R	2600	LTE (FDD)	RRU3260
RRU3262	2T4R	700	LTE (FDD),LM,LN (SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE (FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE (FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE (TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE (TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE (TDD)	RRU3278u
RRU3279	8T8R	2300	LTE (TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE (FDD)	RRU3281
RRU3668	2T2R	450	LTE (FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE ((FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE (FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE ((FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE (FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM,UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM,UMTS,GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE ((FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800MHz:GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE ((FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE (FDD),LM,LN (SUL)	RRU3965
			900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE (FDD),GL,UL,GUL,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL)
RUR3971	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RRU3971a


표 2 5000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU5251	4T4R	2300	LTE (TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE (TDD),NR (TDD),TN (TDD)
RRU5258	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE (FDD)
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5304	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5305	2T0R	1400	LTE (FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE (FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5501
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)
RRU5502	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD)
RRU5502N	4T4R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5502w	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502w
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5505
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505N	2T2R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5507	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5507
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5508	2T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD)
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD
RR5509t	2T4R	700+800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULN(FDD),GULN(FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5512	4T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	4T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
RR5512t	4T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5513	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5513
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5513t	4T4R	1800+2100+2600	1800MHz:LTE (FDD),GL,NR (FDD),GN (FDD),LN (SUL),GLN (SUL),LN (FDD),GLN (FDD),LM (FDD),GLM (FDD),LM (FDD),GLM (FDD)	RRU5513t
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE (FDD),LM,LN (SUL)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5519et	2T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5810	8T8R	3600	LTE (TDD),NR (TDD),TN (TDD)	RRU5810
RRU5818	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5818
	8T8R	2600	LTE (TDD)
	8T8R	3500	LTE (TDD),NR (TDD),TN (TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800MHz:	1800+2100	1800MHz:LTE ((FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE ((FDD),UL
	LTE (FDD): 8T8R		1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100MHz:
	UMTS: 2T4R
	LTE (FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
		AWS	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5904w
	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)
	4T4R	1900	UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL))
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LM (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909s	2T2R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5909s
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5935E	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD)	RRU5935E

태그:

제품 세부 정보

집 > 상품 >

화웨이 BBU RRU

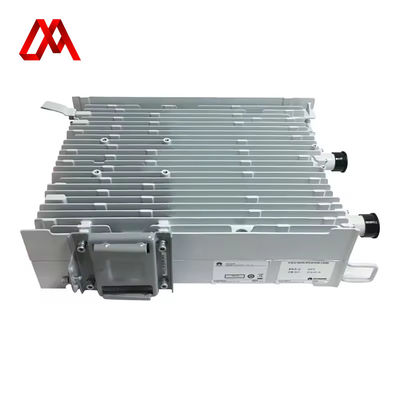

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU

모든 범주

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU

브랜드 이름:	HUAWEI
모델 번호:	RRU5909-2100 미정
포장에 대한 세부 사항:	내부 폼 + 외부 카튼, 나무 프레임 포장
지불 조건:	L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

상세 정보

제품 설명

상세 정보

원래 장소:

중국

브랜드 이름:

HUAWEI

모델 번호:

RRU5909-2100 미정

제품 종류:

베이스밴드 유닛(BBU) 및 원격 무선 유닛(RRU)

전력 소비:

BBU: 250W, RRU: 300W

크기:

BBU: 442mm x 310mm x 86mm, RRU: 442mm x 310mm x 86mm

작동 온도:

BBU: -40°C ~ 55°C, RRU: -40°C ~ 55°C

지원된 표준:

3GPP LTE, 3GPP2 CDMA2000, IEEE 802.11, IEEE 802.3

최대 안테나 수:

BBU: 6, RRU: 2

습도:

5% ~ 95%(비응축)

무게:

BBU: 12kg, RRU: 12kg

지원되는 주파수 대역:

700MHz ~ 3800MHz

최대 출력 파워:

BBU: 20W, RRU: 40W

저장 온도:

BBU: -40°C ~ 70°C, RRU: -40°C ~ 70°C

전원 공급:

AC 또는 Dc

최대 캐리어 수:

BBU: 6, RRU: 2

인터페이스:

BBU: 2x GE, 2x SFP, 2x USB, 1x RS485, 1x E1, 1x GPS, 1x 1588v2, 1x 1PPS, 1x BITS, RRU: 2x CPRI, 1x S

포장 세부 사항:

내부 폼 + 외부 카튼, 나무 프레임 포장

배달 시간:

5~8일

지불 조건:

L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

공급 능력:

주당 2000pcs

강조하다:

48V huawei rru 5909

BTS huawei rru 5909

화웨이 5909 5G rru 라디오 단위

제품 설명

분해된 RRU, 사진이 RRU의 구성요소를 보여줍니다. 그래서 저는 이 사진을 여러분과 공유하고 싶었습니다.

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU 0

기능

1- 베이스밴드 신호를 전송하고 수신합니다.

2- 라디오 주파수 신호를 조절하고 분해합니다.

3- 데이터 처리

4- 신호 강도를 증폭시키세요.

RRU 구성 요소

1-TRX & RX 보드:

- 운반기 위아래 변환 책임

- 변조 및 변조 해제 책임

- 지연 증가 조절

2- 전력 증폭기:

- 신호 증폭 책임

3- 전원 공급:

- RRU 보드에 전력을 공급하고 있어요

4-라디오 듀플렉서필터링:

- 수신 필터와 전송 듀플렉서

화웨이 RRU 시리즈

1-RRU3000 시리즈 모델

2- RRU5000 시리즈모델들

출력 전력 및 운반기 구성

표 1 3000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE (TDD)	RRU3168
RRU3201	2T2R	700	LTE (FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE (FDD)	RRU3203
RRU3220	2T2R	800	LTE (FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE (FDD)	RRU3220E
RRU3221	2T2R	2600	LTE (FDD)	RRU3221
RRU3222	2T2R	800	LTE (FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE (FDD)	RRU3229
RRU3230E	2T2R	1800	LTE (FDD),LTE (NB-IoT),LM	RRU3230E
RRU3232	4T4R	3500	LTE (TDD)	RRU3232
RRU3236E	2T2R	2300	LTE (TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE (FDD)	RRU3240
RRU3249	2T2R	700	LTE (FDD)	RRU3249
RRU3251	2T2R	2300	LTE (TDD)	RRU3251
RRU3252	4T4R	2300	LTE (TDD)	RRU3252
RRU3253	8T8R	2600	LTE (TDD)	RRU3253
RRU3256	4T4R	2300	LTE (TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE (TDD)	RRU3259
RRU3260	2T4R	2600	LTE (FDD)	RRU3260
RRU3262	2T4R	700	LTE (FDD),LM,LN (SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE (FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE (FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE (TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE (TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE (TDD)	RRU3278u
RRU3279	8T8R	2300	LTE (TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE (FDD)	RRU3281
RRU3668	2T2R	450	LTE (FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE ((FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE (FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE ((FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE (FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM,UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM,UMTS,GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE ((FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800MHz:GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE ((FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE (FDD),LM,LN (SUL)	RRU3965
			900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE (FDD),GL,UL,GUL,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL)
RUR3971	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RRU3971a


표 2 5000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU5251	4T4R	2300	LTE (TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE (TDD),NR (TDD),TN (TDD)
RRU5258	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE (FDD)
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5304	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5305	2T0R	1400	LTE (FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE (FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5501
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)
RRU5502	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD)
RRU5502N	4T4R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5502w	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502w
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5505
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505N	2T2R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5507	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5507
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5508	2T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD)
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD
RR5509t	2T4R	700+800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULN(FDD),GULN(FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5512	4T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	4T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
RR5512t	4T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5513	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5513
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5513t	4T4R	1800+2100+2600	1800MHz:LTE (FDD),GL,NR (FDD),GN (FDD),LN (SUL),GLN (SUL),LN (FDD),GLN (FDD),LM (FDD),GLM (FDD),LM (FDD),GLM (FDD)	RRU5513t
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE (FDD),LM,LN (SUL)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5519et	2T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5810	8T8R	3600	LTE (TDD),NR (TDD),TN (TDD)	RRU5810
RRU5818	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5818
	8T8R	2600	LTE (TDD)
	8T8R	3500	LTE (TDD),NR (TDD),TN (TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800MHz:	1800+2100	1800MHz:LTE ((FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE ((FDD),UL
	LTE (FDD): 8T8R		1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100MHz:
	UMTS: 2T4R
	LTE (FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
		AWS	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5904w
	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)
	4T4R	1900	UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL))
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LM (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909s	2T2R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5909s
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5935E	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD)	RRU5935E

태그:

노키아 BBU RRU

에릭슨 BBU RRU

화웨이 BBU RRU

하드 디스크 드라이브

액세스 포인트

이서네트 스위치

노키아 BBU RRU

에릭슨 BBU RRU

화웨이 BBU RRU

하드 디스크 드라이브

액세스 포인트

이서네트 스위치

제품 세부 정보

노키아 BBU RRU

에릭슨 BBU RRU

화웨이 BBU RRU

하드 디스크 드라이브

액세스 포인트

이서네트 스위치

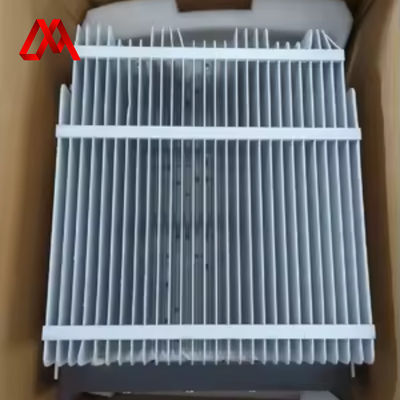

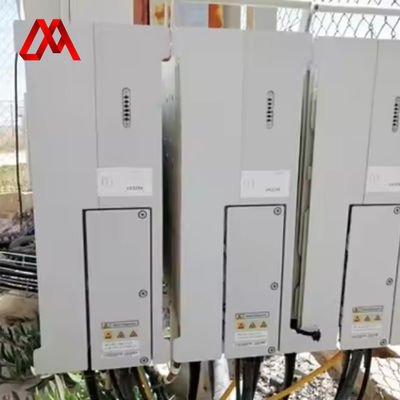

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU

48V huawei rru 5909

BTS huawei rru 5909

화웨이 5909 5G rru 라디오 단위

화웨이 원격 무선 유니트

rru 라디오 리모컨

화웨이 5G 기본 스테이션

제품 세부 정보

노키아 BBU RRU

에릭슨 BBU RRU

화웨이 BBU RRU

하드 디스크 드라이브

액세스 포인트

이서네트 스위치

멀티모드 BTS 화웨이 RRU 5909 2100 TBC 5G 라디오 단위 2x60w 48V 2T2R 02311TBC WD5M215909CU

48V huawei rru 5909

BTS huawei rru 5909

화웨이 5909 5G rru 라디오 단위

화웨이 원격 무선 유니트

rru 라디오 리모컨

화웨이 5G 기본 스테이션
