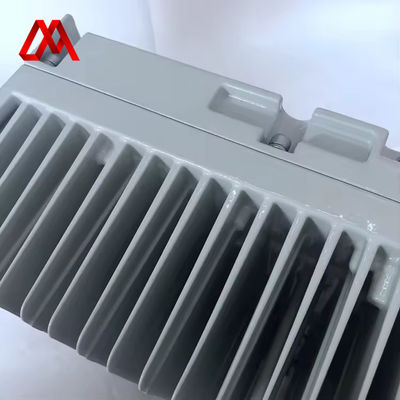

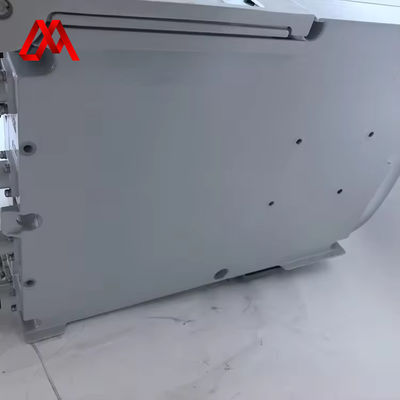

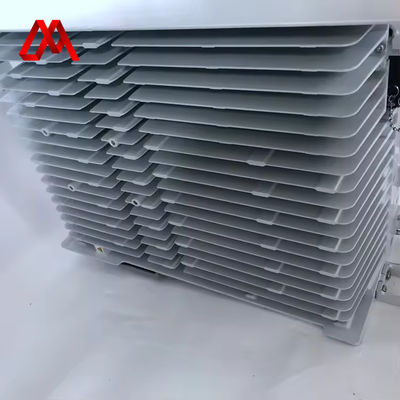

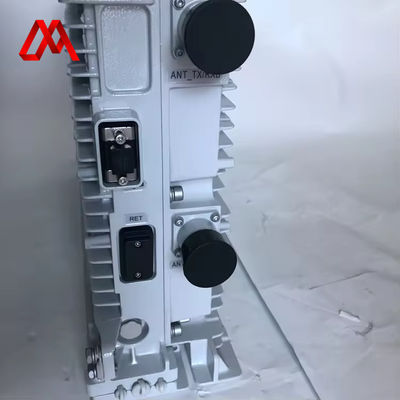

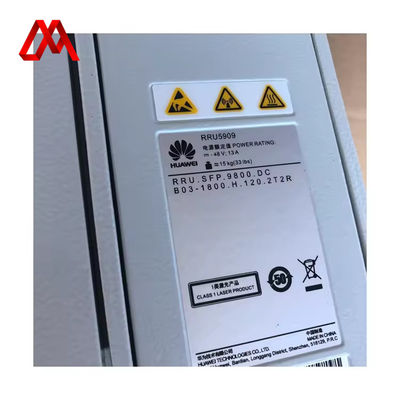

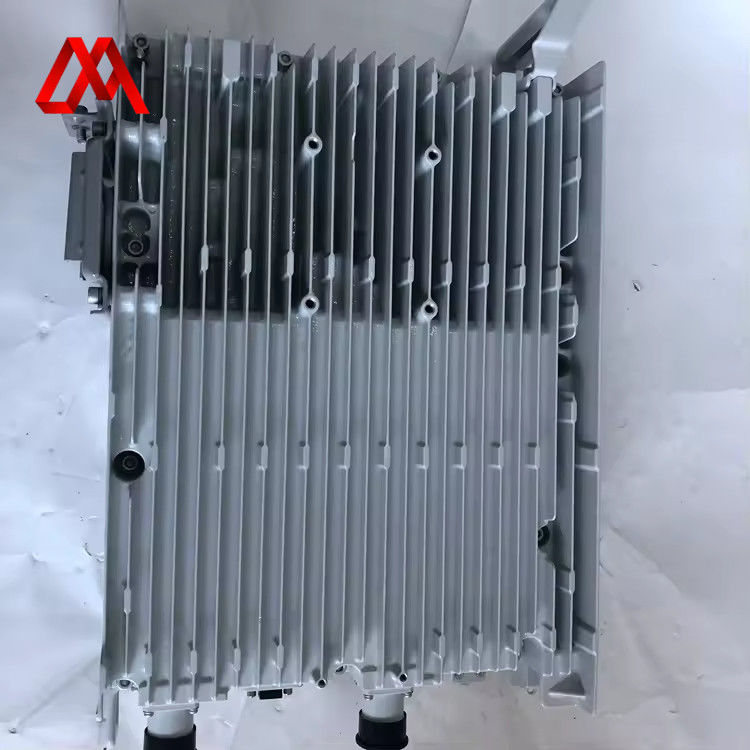

1800mHz 화웨이 5G 베이스 스테이션 BTS RRU 5909 SFP9800DC B03 120.2T2R PPN

브랜드 이름:	HUAWEI
모델 번호:	RRU5909-1800 PPN
포장에 대한 세부 사항:	내부 폼 + 외부 카튼, 나무 프레임 포장
지불 조건:	L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

상세 정보

제품 설명

상세 정보

원래 장소:

작동 습도:

BBU: 5% ~ 95%; RRU: 5% ~ 95%

저장 습도:

BBU: 5% ~ 95%; RRU: 5% ~ 95%

지원되는 프로토콜:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

지원되는 인터페이스:

BBU: CPRI, 이더넷, SFP, USB; RRU: CPRI, 이더넷, SFP, USB

BBU: 5.5kg; RRU: 7kg

작동 온도:

BBU: -40°C ~ +55°C; RRU: -40°C ~ +55°C

저장 온도:

BBU: -40°C ~ +70°C; RRU: -40°C ~ +70°C

제품 종류:

베이스밴드 유닛(BBU) 및 원격 무선 유닛(RRU)

지원되는 주파수 대역:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

BBU: 442mm x 220mm x 43.6mm; RRU: 442mm x 220mm x 43.6mm

지원된 표준:

BBU: 3GPP, ITU-T, IEEE; BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE RRU:

MAX 출력 소비:

BBU: 400W; RRU: 200W

지원되는 기술:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

전원 공급:

BBU: AC 100V ~ 240V; RRU: DC -48V ~ -60V

공급 능력:

주당 2000pcs

강조하다:

1800mHz 화웨이 5G 기지국
,
RRU 화웨이 5G 기지국
,
rru 5909 기지 역

제품 설명

RRU5909 기술 사양

지원되는 주파수 대역 및 RAT

RRU5909로 지원되는 주파수 대역 및 RAT

주파수 대역 (MHz) 프로토콜 정의 대역 RX 주파수 대역 (MHz) TX 주파수 대역 (MHz) RAT IBW (MHz)

1800+2100 밴드 3/n3+밴드 1/n1 1800: 1710 년 부터 1785 년 까지 1800: 1805 년 부터 1880 년 까지 1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD) 1800:40:00

2100: 1920년부터 1980년까지 2100: 2110 ~ 2170 2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD) 2100:40:00

1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

TX/RX 모드와 용량

표 2 RRU5909의 TX/RX 모드와 용량 (1800 MHz+2100 MHz)

주파수 대역 (MHz) 프로토콜 정의 대역 TX/RX 모드 (a) 용량 (b) 지원 대역폭 (MHz)

1800+2100 밴드 3/n3+밴드 1/n1 1800: 4T4R GSM: 8개 통신사 LTE FDD: 5/10/15/20

2100: 4T4R UMTS: 8개의 통신기 NR SUL: 15/20

LTE FDD: 3개의 통신사 (한 대역) 및 4개의 통신사 (두 대역) NR FDD:

LTE NB-IoT: 1개의 통신사 1800 MHz: 5/10/15/20/25/30

NR SUL: 1개 항공기 2100 MHz: 5/10/15/20/25/30/40

NR FDD: 3개의 통신기 (하나의 대역) 및 4개의 통신기 (두 개의 대역)

a: TX/RX 모드 열의 mTnR은 RF 모듈이 전송 채널을 m개, 수신 채널을 n개로 사용하는 것을 나타냅니다.

b: 용량 열에 있는 운반기 수는 RAT가 구성된 모듈에 대해 구성될 수 있는 최대 운반기 수를 의미합니다.하나의 채널에 구성될 수 있는 통신기 수는 아닙니다.. 단일 모드 및 멀티 모드 시나리오에서 지원되는 모듈 레벨 및 채널 레벨 캐리어 구성에 대한 자세한 내용은 다음 표의 출력 전력 구성 열을 참조하십시오.모듈이 기능과 함께 사용되는 경우, 해당 기능 매개 변수 설명에 있는 기능 사양을 참조하여 해당 기능이 활성화된 후 지원되는 모듈 레벨 또는 채널 레벨 통신기 구성을 알아보세요.

분해된 RRU, 사진이 RRU의 구성요소를 보여줍니다. 그래서 저는 이 사진을 여러분과 공유하고 싶었습니다.

원격 전파 단위 (RRU): 신호 처리 장치, 전력 증폭기,그리고 두 개의 송신기가 탑의 높이 또는 케이블의 길이로 인해 발생하는 붕괴 문제로부터 신호를 치료하기 위해 신호를 증폭시키는 작업을 수행합니다..

기능

1- 베이스밴드 신호를 전송하고 수신합니다.

2- 라디오 주파수 신호를 조절하고 분해합니다.

3- 데이터 처리

4- 신호 강도를 증폭시키세요.

RRU 구성 요소

1-TRX & RX 보드:

- 운반기 위아래 변환 책임

- 변조 및 변조 해제 책임

- 지연 증가 조절

2- 전력 증폭기:

- 신호 증폭 책임

3- 전원 공급:

- RRU 보드에 전력을 공급하고 있어요

4-라디오 듀플렉서필터링:

- 수신 필터와 전송 듀플렉서

화웨이 RRU 시리즈

1-RRU3000 시리즈 모델

각종 용도 및 용량 및 용량 및 용량 및 용량, 용량 및 용량, 용량, 용량, 용량, 용량, 용량, 용량, 용량RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829,RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961,RRU3962, RRU3965, RUR3971, RRU3971a

2- RRU5000 시리즈모델들

부산광역시 광역지방자치단체, 부산광역시 광역지방자치단체RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909,RRU5909N, RRU5909s, RRU5935E

출력 전력 및 운반기 구성

표 1 3000 시리즈 RRU

RRU 모델 XTXR 주파수 대역 (MHz) 지원된 RAT 장치 매개 변수

RRU3004 2T2R 900 GSM RRU3004

1800

RRU3308v1 2T2R 850 GSM RRU3308v1

900

1800

1900

RRU3008v2 2T2R 900 GSM RRU3008v2

RRU3168 8T8R 1900 LTE (TDD) RRU3168

RRU3201 2T2R 700 LTE (FDD) RRU3201

2600

RRU3203 2T2R 700 LTE (FDD) RRU3203

RRU3220 2T2R 800 LTE (FDD),LM RRU3220

RRU3220E 2T2R 1800 LTE (FDD) RRU3220E

RRU3221 2T2R 2600 LTE (FDD) RRU3221

RRU3222 2T2R 800 LTE (FDD),LM RRU3222

RRU3229 2T2R 2600 LTE (FDD) RRU3229

RRU3230E 2T2R 1800 LTE (FDD),LTE (NB-IoT),LM RRU3230E

RRU3232 4T4R 3500 LTE (TDD) RRU3232

RRU3236E 2T2R 2300 LTE (TDD) RRU3236E

3500

RRU3240 2T4R 2600 LTE (FDD) RRU3240

RRU3249 2T2R 700 LTE (FDD) RRU3249

RRU3251 2T2R 2300 LTE (TDD) RRU3251

RRU3252 4T4R 2300 LTE (TDD) RRU3252

RRU3253 8T8R 2600 LTE (TDD) RRU3253

RRU3256 4T4R 2300 LTE (TDD) RRU3256

2600

3500

RRU3259 8T8R 2600 LTE (TDD) RRU3259

RRU3260 2T4R 2600 LTE (FDD) RRU3260

RRU3262 2T4R 700 LTE (FDD),LM,LN (SUL) RRU3262

850

2600

RRU3268 2T2R 700 LTE (FDD),LM RRU3268

800

2600

RRU3269 2T2R 700 LTE (FDD),LM RRU3269

RRU3276 4T4R 2300 LTE (TDD) RRU3276

2600

RRU3278 8T8R 3500 LTE (TDD) RRU3278

3650

3700

RRU3278u 8T8R 3500 LTE (TDD) RRU3278u

RRU3279 8T8R 2300 LTE (TDD) RRU3279

2600

RRU3281 4T4R 2600 LTE (FDD) RRU3281

RRU3668 2T2R 450 LTE (FDD) RRU3668

RRU3810E 1T2R 850 UMTS RRU3810E

1900

2100

RRU3804 1T2R 850 UMTS RRU3804

1900

AWS

2100

RRU3805 2T2R 850 UMTS RRU3805

1900

RRU3806 1T2R 2100 UMTS RRU3806

RRU3808 2T2R AWS UMTS,LTE ((FDD),UL RRU3808

2100

RRU3821E 2T2R 1800 LTE (FDD) RRU3821E

RRU3824 1T2R 2100 UMTS RRU3824

RRU3826 1T2R 2100 UMTS RRU3826

RRU3828 2T2R 2100 UMTS RRU3828

RRU3829 2T2R 2100 UMTS RRU3829

RRU3832 2T4R AWS UMTS,LTE ((FDD),UL RRU3832

2100

RRU3838 2T2R 2100 UMTS RRU3838

RRU3839 2T2R 2100 UMTS RRU3839

RRU3841 4T4R AWS LTE (FDD),LM RRU3841

RRU3853 2T4R UMTS UMTS RRU3853

RRU3908v1 2T2R 850 GSM,UMTS RRU3908v1

900

1800

1900

RRU3908v2 2T2R 850 GSM,UMTS,GU RRU3908v2

900

RRU3926 1T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3926

1800

RRU3928 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3928

RRU3929 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3929

RRU3930E 2T2R 2100 UMTS,LTE ((FDD),UL RRU3930E

RRU3936 1T2R 850 GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3936

900

1800

1900

RRU3938 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3938

1800

RRU3939 2T2R 1800 GSM,LTE ((FDD),GL,LM,GLM RRU3939

RRU3942 2T4R 850 GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3942

1900

RRU3952 2T4R 850 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3952

2100

RRU3952m 2T4R 1800+2100 1800MHz:GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL) RRU3952m

2100+1800 2100MHz:UMTS,LTE ((FDD),UL

RRU3953 2T4R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3953

1800

1900

2100

RRU3953w 2T4R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL) RRU3953w

RRU3958 2T2R 2100 UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL) RRU3958

RRU3959 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3959

1800

2100

RRU3959a 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3959a

1800

2100

RRU3959w 2T2R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL) RRU3959w

RRU3961 2T2R 800+900EGSM 800MHz:LTE (FDD),LTE (NB-IoT),LM RRU3961

900 EGSM:GSM,UMTS,GU

800MHz+900 EGSM:GL,UL,GUL

RRU3962 2T4R 1800+2100 RRU3962

1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)

2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)

1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)

RRU3965 2T2R 800+900EGSM 800MHz:LTE (FDD),LM,LN (SUL) RRU3965

900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM

800MHz+900 EGSM:LTE (FDD),GL,UL,GUL,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL)

RUR3971 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL) RUR3971

1900

AWS

2100

RRU3971a 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL) RRU3971a

표 2 5000 시리즈 RRU

RRU 모델 XTXR 주파수 대역 (MHz) 지원된 RAT 장치 매개 변수

RRU5251 4T4R 2300 LTE (TDD) RRU5251

RRU5254 8T8R 2600 LTE (TDD), NR (TDD) RRU5254

4T4R 2300+2600 LTE (TDD),NR (TDD),TN (TDD)

RRU5258 8T8R 2300 LTE (TDD),NR (TDD),TN (TDD) RRU5258

2600

3500

3650

3700

RRU5301 4T4R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5301

4T0R 1400 LTE (FDD)

4T4R 2600 LTE (FDD),NR (FDD),LN (FDD)

RRU5304 4T4R 2600 LTE (FDD),NR (FDD),LN (FDD) RRU5304

RRU5304w 4T4R 700 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5304w

4T4R 2600 LTE (FDD),NR (FDD),LN (FDD)

RRU5305 2T0R 1400 LTE (FDD) RRU5305

RRU5308 2T2R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5308

RRU5309 2T2R 700 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5309

800

RRU5309w 2T2R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5309w

RRU5336E 4T4R 2600 LTE (FDD) RRU5336E

RRU5501 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5501

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)

RRU5502 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5502

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

4T4R AWS+PCS AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD)

AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD)

RRU5502N 4T4R 1800+2100 1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5502N

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)

RRU5502w 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5502w

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5505 2T2R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5505

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5505N 2T2R 1800+2100 1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5505N

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)

RRU5507 2T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5507

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5508 2T4R 700+850 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5508

850MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)

700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 700+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 800+900 800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 1800+2100 1800MHz:LTE (FDD),GL,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD)

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD

RR5509t 2T4R 700+800+900 800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RR5509t

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULN(FDD),GULN(FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5512 4T4R 700+850 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5512

850MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

4T4R 700+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

RR5512t 4T4R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RR5512t

800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5513 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5513

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5513t 4T4R 1800+2100+2600 1800MHz:LTE (FDD),GL,NR (FDD),GN (FDD),LN (SUL),GLN (SUL),LN (FDD),GLN (FDD),LM (FDD),GLM (FDD),LM (FDD),GLM (FDD) RRU5513t

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

2600MHz:LTE (FDD),NR (FDD),LN (FDD)

RRU5513w 4T4R AWS+PCS AWS:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD) RRU5513w

PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)

AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD),GULMN(FDD)

RRU5515t 2T2R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5515t

800MHz:LTE (FDD),LM,LN (SUL)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5519et 2T4R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5519et

800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5810 8T8R 3600 LTE (TDD),NR (TDD),TN (TDD) RRU5810

RRU5818 8T8R 2300 LTE (TDD),NR (TDD),TN (TDD) RRU5818

8T8R 2600 LTE (TDD)

8T8R 3500 LTE (TDD),NR (TDD),TN (TDD)

RRU5836E 4T4R 3500 LTE (TDD), NR (TDD) RRU5836E

3700

RRU5862 1800MHz: 1800+2100 1800MHz:LTE ((FDD),GL,LM,GLM RRU5862

GSM: 4T4R 2100MHz:UMTS,LTE ((FDD),UL

LTE (FDD): 8T8R 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM

2100MHz:

UMTS: 2T4R

LTE (FDD): 8T8R

RRU5901 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD) RRU5901

4T4R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

AWS UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5901N 4T4R 1800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5901N

RRU5901W 4T4R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD) RRU5901W

RRU5903 2T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD) RRU5903

2T4R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)

2T4R 1900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)

RRU5903w 2T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD) RRU5903w

RRU5904 4T4R 1800 GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD) RRU5904

4T4R 2100 UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5904N 4T4R 1800 LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD) RRU5904N

RRU5904w 4T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD) RRU5904w

4T4R 1800 GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)

4T4R 1900 UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL))

RRU5905 2T2R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD) RRU5905

2T2R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5905w 2T2R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD) RRU5905w

RRU5909 2T2R 700 LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LM (FDD) RRU5909

2T2R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

2T2R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5909N 2T2R 1800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5909N

RRU5909s 2T2R 1800 LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD) RRU5909s

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5935E 2T2R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD) RRU5935E

태그:
화웨이 원격 무선 유니트

rru 라디오 리모컨

화웨이 5G 기본 스테이션

제품 세부 정보

집 > 상품 >
화웨이 BBU RRU
>
1800mHz 화웨이 5G 베이스 스테이션 BTS RRU 5909 SFP9800DC B03 120.2T2R PPN

모든 범주

노키아 BBU RRU

에릭슨 BBU RRU

화웨이 BBU RRU

하드 디스크 드라이브

액세스 포인트

이서네트 스위치

1800mHz 화웨이 5G 베이스 스테이션 BTS RRU 5909 SFP9800DC B03 120.2T2R PPN

브랜드 이름: HUAWEI

모델 번호: RRU5909-1800 PPN

포장에 대한 세부 사항: 내부 폼 + 외부 카튼, 나무 프레임 포장

지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

상세 정보

제품 설명

상세 정보

원래 장소:

중국

브랜드 이름:

HUAWEI

모델 번호:

RRU5909-1800 PPN

작동 습도:

BBU: 5% ~ 95%; RRU: 5% ~ 95%

저장 습도:

BBU: 5% ~ 95%; RRU: 5% ~ 95%

지원되는 프로토콜:

BBU: IP, TCP, UDP, SNMP; RRU: IP, TCP, UDP, SNMP

지원되는 인터페이스:

BBU: CPRI, 이더넷, SFP, USB; RRU: CPRI, 이더넷, SFP, USB

무게:

BBU: 5.5kg; RRU: 7kg

작동 온도:

BBU: -40°C ~ +55°C; RRU: -40°C ~ +55°C

저장 온도:

BBU: -40°C ~ +70°C; RRU: -40°C ~ +70°C

제품 종류:

베이스밴드 유닛(BBU) 및 원격 무선 유닛(RRU)

지원되는 주파수 대역:

BBU: GSM, UMTS, LTE, 5G; RRU: GSM, UMTS, LTE, 5G

크기:

BBU: 442mm x 220mm x 43.6mm; RRU: 442mm x 220mm x 43.6mm

지원된 표준:

BBU: 3GPP, ITU-T, IEEE; BBU: 3GPP, ITU-T, IEEE; RRU: 3GPP, ITU-T, IEEE RRU:

MAX 출력 소비:

BBU: 400W; RRU: 200W

지원되는 기술:

BBU: 2G, 3G, 4G, 5G; RRU: 2G, 3G, 4G, 5G

전원 공급:

BBU: AC 100V ~ 240V; RRU: DC -48V ~ -60V

포장 세부 사항:

내부 폼 + 외부 카튼, 나무 프레임 포장

배달 시간:

5~8일

지불 조건:

L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

공급 능력:

주당 2000pcs

강조하다:

1800mHz 화웨이 5G 기지국
,
RRU 화웨이 5G 기지국
,
rru 5909 기지 역

제품 설명

RRU5909 기술 사양

지원되는 주파수 대역 및 RAT

RRU5909로 지원되는 주파수 대역 및 RAT

주파수 대역 (MHz) 프로토콜 정의 대역 RX 주파수 대역 (MHz) TX 주파수 대역 (MHz) RAT IBW (MHz)

1800+2100 밴드 3/n3+밴드 1/n1 1800: 1710 년 부터 1785 년 까지 1800: 1805 년 부터 1880 년 까지 1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD) 1800:40:00

2100: 1920년부터 1980년까지 2100: 2110 ~ 2170 2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD) 2100:40:00

1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

TX/RX 모드와 용량

표 2 RRU5909의 TX/RX 모드와 용량 (1800 MHz+2100 MHz)

주파수 대역 (MHz) 프로토콜 정의 대역 TX/RX 모드 (a) 용량 (b) 지원 대역폭 (MHz)

1800+2100 밴드 3/n3+밴드 1/n1 1800: 4T4R GSM: 8개 통신사 LTE FDD: 5/10/15/20

2100: 4T4R UMTS: 8개의 통신기 NR SUL: 15/20

LTE FDD: 3개의 통신사 (한 대역) 및 4개의 통신사 (두 대역) NR FDD:

LTE NB-IoT: 1개의 통신사 1800 MHz: 5/10/15/20/25/30

NR SUL: 1개 항공기 2100 MHz: 5/10/15/20/25/30/40

NR FDD: 3개의 통신기 (하나의 대역) 및 4개의 통신기 (두 개의 대역)

a: TX/RX 모드 열의 mTnR은 RF 모듈이 전송 채널을 m개, 수신 채널을 n개로 사용하는 것을 나타냅니다.

b: 용량 열에 있는 운반기 수는 RAT가 구성된 모듈에 대해 구성될 수 있는 최대 운반기 수를 의미합니다.하나의 채널에 구성될 수 있는 통신기 수는 아닙니다.. 단일 모드 및 멀티 모드 시나리오에서 지원되는 모듈 레벨 및 채널 레벨 캐리어 구성에 대한 자세한 내용은 다음 표의 출력 전력 구성 열을 참조하십시오.모듈이 기능과 함께 사용되는 경우, 해당 기능 매개 변수 설명에 있는 기능 사양을 참조하여 해당 기능이 활성화된 후 지원되는 모듈 레벨 또는 채널 레벨 통신기 구성을 알아보세요.

분해된 RRU, 사진이 RRU의 구성요소를 보여줍니다. 그래서 저는 이 사진을 여러분과 공유하고 싶었습니다.

원격 전파 단위 (RRU): 신호 처리 장치, 전력 증폭기,그리고 두 개의 송신기가 탑의 높이 또는 케이블의 길이로 인해 발생하는 붕괴 문제로부터 신호를 치료하기 위해 신호를 증폭시키는 작업을 수행합니다..

기능

1- 베이스밴드 신호를 전송하고 수신합니다.

2- 라디오 주파수 신호를 조절하고 분해합니다.

3- 데이터 처리

4- 신호 강도를 증폭시키세요.

RRU 구성 요소

1-TRX & RX 보드:

- 운반기 위아래 변환 책임

- 변조 및 변조 해제 책임

- 지연 증가 조절

2- 전력 증폭기:

- 신호 증폭 책임

3- 전원 공급:

- RRU 보드에 전력을 공급하고 있어요

4-라디오 듀플렉서필터링:

- 수신 필터와 전송 듀플렉서

화웨이 RRU 시리즈

1-RRU3000 시리즈 모델

각종 용도 및 용량 및 용량 및 용량 및 용량, 용량 및 용량, 용량, 용량, 용량, 용량, 용량, 용량, 용량RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829,RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961,RRU3962, RRU3965, RUR3971, RRU3971a

2- RRU5000 시리즈모델들

부산광역시 광역지방자치단체, 부산광역시 광역지방자치단체RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909,RRU5909N, RRU5909s, RRU5935E

출력 전력 및 운반기 구성

표 1 3000 시리즈 RRU

RRU 모델 XTXR 주파수 대역 (MHz) 지원된 RAT 장치 매개 변수

RRU3004 2T2R 900 GSM RRU3004

1800

RRU3308v1 2T2R 850 GSM RRU3308v1

900

1800

1900

RRU3008v2 2T2R 900 GSM RRU3008v2

RRU3168 8T8R 1900 LTE (TDD) RRU3168

RRU3201 2T2R 700 LTE (FDD) RRU3201

2600

RRU3203 2T2R 700 LTE (FDD) RRU3203

RRU3220 2T2R 800 LTE (FDD),LM RRU3220

RRU3220E 2T2R 1800 LTE (FDD) RRU3220E

RRU3221 2T2R 2600 LTE (FDD) RRU3221

RRU3222 2T2R 800 LTE (FDD),LM RRU3222

RRU3229 2T2R 2600 LTE (FDD) RRU3229

RRU3230E 2T2R 1800 LTE (FDD),LTE (NB-IoT),LM RRU3230E

RRU3232 4T4R 3500 LTE (TDD) RRU3232

RRU3236E 2T2R 2300 LTE (TDD) RRU3236E

3500

RRU3240 2T4R 2600 LTE (FDD) RRU3240

RRU3249 2T2R 700 LTE (FDD) RRU3249

RRU3251 2T2R 2300 LTE (TDD) RRU3251

RRU3252 4T4R 2300 LTE (TDD) RRU3252

RRU3253 8T8R 2600 LTE (TDD) RRU3253

RRU3256 4T4R 2300 LTE (TDD) RRU3256

2600

3500

RRU3259 8T8R 2600 LTE (TDD) RRU3259

RRU3260 2T4R 2600 LTE (FDD) RRU3260

RRU3262 2T4R 700 LTE (FDD),LM,LN (SUL) RRU3262

850

2600

RRU3268 2T2R 700 LTE (FDD),LM RRU3268

800

2600

RRU3269 2T2R 700 LTE (FDD),LM RRU3269

RRU3276 4T4R 2300 LTE (TDD) RRU3276

2600

RRU3278 8T8R 3500 LTE (TDD) RRU3278

3650

3700

RRU3278u 8T8R 3500 LTE (TDD) RRU3278u

RRU3279 8T8R 2300 LTE (TDD) RRU3279

2600

RRU3281 4T4R 2600 LTE (FDD) RRU3281

RRU3668 2T2R 450 LTE (FDD) RRU3668

RRU3810E 1T2R 850 UMTS RRU3810E

1900

2100

RRU3804 1T2R 850 UMTS RRU3804

1900

AWS

2100

RRU3805 2T2R 850 UMTS RRU3805

1900

RRU3806 1T2R 2100 UMTS RRU3806

RRU3808 2T2R AWS UMTS,LTE ((FDD),UL RRU3808

2100

RRU3821E 2T2R 1800 LTE (FDD) RRU3821E

RRU3824 1T2R 2100 UMTS RRU3824

RRU3826 1T2R 2100 UMTS RRU3826

RRU3828 2T2R 2100 UMTS RRU3828

RRU3829 2T2R 2100 UMTS RRU3829

RRU3832 2T4R AWS UMTS,LTE ((FDD),UL RRU3832

2100

RRU3838 2T2R 2100 UMTS RRU3838

RRU3839 2T2R 2100 UMTS RRU3839

RRU3841 4T4R AWS LTE (FDD),LM RRU3841

RRU3853 2T4R UMTS UMTS RRU3853

RRU3908v1 2T2R 850 GSM,UMTS RRU3908v1

900

1800

1900

RRU3908v2 2T2R 850 GSM,UMTS,GU RRU3908v2

900

RRU3926 1T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3926

1800

RRU3928 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3928

RRU3929 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3929

RRU3930E 2T2R 2100 UMTS,LTE ((FDD),UL RRU3930E

RRU3936 1T2R 850 GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3936

900

1800

1900

RRU3938 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3938

1800

RRU3939 2T2R 1800 GSM,LTE ((FDD),GL,LM,GLM RRU3939

RRU3942 2T4R 850 GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3942

1900

RRU3952 2T4R 850 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM RRU3952

2100

RRU3952m 2T4R 1800+2100 1800MHz:GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL) RRU3952m

2100+1800 2100MHz:UMTS,LTE ((FDD),UL

RRU3953 2T4R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3953

1800

1900

2100

RRU3953w 2T4R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL) RRU3953w

RRU3958 2T2R 2100 UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL) RRU3958

RRU3959 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3959

1800

2100

RRU3959a 2T2R 900 GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM RRU3959a

1800

2100

RRU3959w 2T2R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL) RRU3959w

RRU3961 2T2R 800+900EGSM 800MHz:LTE (FDD),LTE (NB-IoT),LM RRU3961

900 EGSM:GSM,UMTS,GU

800MHz+900 EGSM:GL,UL,GUL

RRU3962 2T4R 1800+2100 RRU3962

1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)

2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)

1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)

RRU3965 2T2R 800+900EGSM 800MHz:LTE (FDD),LM,LN (SUL) RRU3965

900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM

800MHz+900 EGSM:LTE (FDD),GL,UL,GUL,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL)

RUR3971 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL) RUR3971

1900

AWS

2100

RRU3971a 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL) RRU3971a

표 2 5000 시리즈 RRU

RRU 모델 XTXR 주파수 대역 (MHz) 지원된 RAT 장치 매개 변수

RRU5251 4T4R 2300 LTE (TDD) RRU5251

RRU5254 8T8R 2600 LTE (TDD), NR (TDD) RRU5254

4T4R 2300+2600 LTE (TDD),NR (TDD),TN (TDD)

RRU5258 8T8R 2300 LTE (TDD),NR (TDD),TN (TDD) RRU5258

2600

3500

3650

3700

RRU5301 4T4R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5301

4T0R 1400 LTE (FDD)

4T4R 2600 LTE (FDD),NR (FDD),LN (FDD)

RRU5304 4T4R 2600 LTE (FDD),NR (FDD),LN (FDD) RRU5304

RRU5304w 4T4R 700 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5304w

4T4R 2600 LTE (FDD),NR (FDD),LN (FDD)

RRU5305 2T0R 1400 LTE (FDD) RRU5305

RRU5308 2T2R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5308

RRU5309 2T2R 700 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5309

800

RRU5309w 2T2R 800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5309w

RRU5336E 4T4R 2600 LTE (FDD) RRU5336E

RRU5501 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5501

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)

RRU5502 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5502

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

4T4R AWS+PCS AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD)

AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD)

RRU5502N 4T4R 1800+2100 1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5502N

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)

RRU5502w 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5502w

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5505 2T2R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5505

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5505N 2T2R 1800+2100 1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5505N

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)

RRU5507 2T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5507

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5508 2T4R 700+850 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5508

850MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)

700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 700+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 800+900 800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

2T4R 1800+2100 1800MHz:LTE (FDD),GL,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD)

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD

RR5509t 2T4R 700+800+900 800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RR5509t

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULN(FDD),GULN(FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5512 4T4R 700+850 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5512

850MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

4T4R 700+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD

RR5512t 4T4R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RR5512t

800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5513 4T4R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD) RRU5513

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)

RRU5513t 4T4R 1800+2100+2600 1800MHz:LTE (FDD),GL,NR (FDD),GN (FDD),LN (SUL),GLN (SUL),LN (FDD),GLN (FDD),LM (FDD),GLM (FDD),LM (FDD),GLM (FDD) RRU5513t

2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

2600MHz:LTE (FDD),NR (FDD),LN (FDD)

RRU5513w 4T4R AWS+PCS AWS:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD) RRU5513w

PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)

AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD),GULMN(FDD)

RRU5515t 2T2R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5515t

800MHz:LTE (FDD),LM,LN (SUL)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5519et 2T4R 700+800+900 700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5519et

800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)

700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)

800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)

700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)

RRU5810 8T8R 3600 LTE (TDD),NR (TDD),TN (TDD) RRU5810

RRU5818 8T8R 2300 LTE (TDD),NR (TDD),TN (TDD) RRU5818

8T8R 2600 LTE (TDD)

8T8R 3500 LTE (TDD),NR (TDD),TN (TDD)

RRU5836E 4T4R 3500 LTE (TDD), NR (TDD) RRU5836E

3700

RRU5862 1800MHz: 1800+2100 1800MHz:LTE ((FDD),GL,LM,GLM RRU5862

GSM: 4T4R 2100MHz:UMTS,LTE ((FDD),UL

LTE (FDD): 8T8R 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM

2100MHz:

UMTS: 2T4R

LTE (FDD): 8T8R

RRU5901 4T4R 1800 LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD) RRU5901

4T4R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

AWS UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5901N 4T4R 1800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5901N

RRU5901W 4T4R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD) RRU5901W

RRU5903 2T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD) RRU5903

2T4R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)

2T4R 1900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)

RRU5903w 2T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD) RRU5903w

RRU5904 4T4R 1800 GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD) RRU5904

4T4R 2100 UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5904N 4T4R 1800 LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD) RRU5904N

RRU5904w 4T4R 850 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD) RRU5904w

4T4R 1800 GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)

4T4R 1900 UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL))

RRU5905 2T2R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD) RRU5905

2T2R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5905w 2T2R 1800 GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD) RRU5905w

RRU5909 2T2R 700 LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LM (FDD) RRU5909

2T2R 900 GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)

2T2R 1800 GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5909N 2T2R 1800 LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) RRU5909N

RRU5909s 2T2R 1800 LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD) RRU5909s

2T2R 2100 UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)

RRU5935E 2T2R 1800+2100 1800MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD) RRU5935E

태그:
화웨이 원격 무선 유니트

rru 라디오 리모컨

화웨이 5G 기본 스테이션

주파수 대역 (MHz)	프로토콜 정의 대역	RX 주파수 대역 (MHz)	TX 주파수 대역 (MHz)	RAT	IBW (MHz)
1800+2100	밴드 3/n3+밴드 1/n1	1800: 1710 년 부터 1785 년 까지	1800: 1805 년 부터 1880 년 까지	1800 MHz: LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD), GLMN (FDD)	1800:40:00
		2100: 1920년부터 1980년까지	2100: 2110 ~ 2170	2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD)	2100:40:00
				1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LM, GLM, GULM, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL), NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), GULN (FDD), LMN (FDD),GLMN (FDD), GULMN (FDD)

TX/RX 모드와 용량
표 2 RRU5909의 TX/RX 모드와 용량 (1800 MHz+2100 MHz)
주파수 대역 (MHz)	프로토콜 정의 대역	TX/RX 모드 (a)	용량 (b)	지원 대역폭 (MHz)
1800+2100	밴드 3/n3+밴드 1/n1	1800: 4T4R	GSM: 8개 통신사	LTE FDD: 5/10/15/20
		2100: 4T4R	UMTS: 8개의 통신기	NR SUL: 15/20
			LTE FDD: 3개의 통신사 (한 대역) 및 4개의 통신사 (두 대역)	NR FDD:
			LTE NB-IoT: 1개의 통신사	1800 MHz: 5/10/15/20/25/30
			NR SUL: 1개 항공기	2100 MHz: 5/10/15/20/25/30/40
			NR FDD: 3개의 통신기 (하나의 대역) 및 4개의 통신기 (두 개의 대역)
a: TX/RX 모드 열의 mTnR은 RF 모듈이 전송 채널을 m개, 수신 채널을 n개로 사용하는 것을 나타냅니다.
b: 용량 열에 있는 운반기 수는 RAT가 구성된 모듈에 대해 구성될 수 있는 최대 운반기 수를 의미합니다.하나의 채널에 구성될 수 있는 통신기 수는 아닙니다.. 단일 모드 및 멀티 모드 시나리오에서 지원되는 모듈 레벨 및 채널 레벨 캐리어 구성에 대한 자세한 내용은 다음 표의 출력 전력 구성 열을 참조하십시오.모듈이 기능과 함께 사용되는 경우, 해당 기능 매개 변수 설명에 있는 기능 사양을 참조하여 해당 기능이 활성화된 후 지원되는 모듈 레벨 또는 채널 레벨 통신기 구성을 알아보세요.

표 1 3000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU3004	2T2R	900	GSM	RRU3004
		1800
RRU3308v1	2T2R	850	GSM	RRU3308v1
		900
		1800
		1900
RRU3008v2	2T2R	900	GSM	RRU3008v2
RRU3168	8T8R	1900	LTE (TDD)	RRU3168
RRU3201	2T2R	700	LTE (FDD)	RRU3201
		2600
RRU3203	2T2R	700	LTE (FDD)	RRU3203
RRU3220	2T2R	800	LTE (FDD),LM	RRU3220
RRU3220E	2T2R	1800	LTE (FDD)	RRU3220E
RRU3221	2T2R	2600	LTE (FDD)	RRU3221
RRU3222	2T2R	800	LTE (FDD),LM	RRU3222
RRU3229	2T2R	2600	LTE (FDD)	RRU3229
RRU3230E	2T2R	1800	LTE (FDD),LTE (NB-IoT),LM	RRU3230E
RRU3232	4T4R	3500	LTE (TDD)	RRU3232
RRU3236E	2T2R	2300	LTE (TDD)	RRU3236E
		3500
RRU3240	2T4R	2600	LTE (FDD)	RRU3240
RRU3249	2T2R	700	LTE (FDD)	RRU3249
RRU3251	2T2R	2300	LTE (TDD)	RRU3251
RRU3252	4T4R	2300	LTE (TDD)	RRU3252
RRU3253	8T8R	2600	LTE (TDD)	RRU3253
RRU3256	4T4R	2300	LTE (TDD)	RRU3256
		2600
		3500
RRU3259	8T8R	2600	LTE (TDD)	RRU3259
RRU3260	2T4R	2600	LTE (FDD)	RRU3260
RRU3262	2T4R	700	LTE (FDD),LM,LN (SUL)	RRU3262
		850
		2600
RRU3268	2T2R	700	LTE (FDD),LM	RRU3268
		800
		2600
RRU3269	2T2R	700	LTE (FDD),LM	RRU3269
RRU3276	4T4R	2300	LTE (TDD)	RRU3276
		2600
RRU3278	8T8R	3500	LTE (TDD)	RRU3278
		3650
		3700
RRU3278u	8T8R	3500	LTE (TDD)	RRU3278u
RRU3279	8T8R	2300	LTE (TDD)	RRU3279
		2600
RRU3281	4T4R	2600	LTE (FDD)	RRU3281
RRU3668	2T2R	450	LTE (FDD)	RRU3668
RRU3810E	1T2R	850	UMTS	RRU3810E
		1900
		2100
RRU3804	1T2R	850	UMTS	RRU3804
		1900
		AWS
		2100
RRU3805	2T2R	850	UMTS	RRU3805
		1900
RRU3806	1T2R	2100	UMTS	RRU3806
RRU3808	2T2R	AWS	UMTS,LTE ((FDD),UL	RRU3808
		2100
RRU3821E	2T2R	1800	LTE (FDD)	RRU3821E
RRU3824	1T2R	2100	UMTS	RRU3824
RRU3826	1T2R	2100	UMTS	RRU3826
RRU3828	2T2R	2100	UMTS	RRU3828
RRU3829	2T2R	2100	UMTS	RRU3829
RRU3832	2T4R	AWS	UMTS,LTE ((FDD),UL	RRU3832
		2100
RRU3838	2T2R	2100	UMTS	RRU3838
RRU3839	2T2R	2100	UMTS	RRU3839
RRU3841	4T4R	AWS	LTE (FDD),LM	RRU3841
RRU3853	2T4R	UMTS	UMTS	RRU3853
RRU3908v1	2T2R	850	GSM,UMTS	RRU3908v1
		900
		1800
		1900
RRU3908v2	2T2R	850	GSM,UMTS,GU	RRU3908v2
		900
RRU3926	1T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3926
		1800
RRU3928	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3928
RRU3929	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3929
RRU3930E	2T2R	2100	UMTS,LTE ((FDD),UL	RRU3930E
RRU3936	1T2R	850	GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3936
		900
		1800
		1900
RRU3938	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3938
		1800
RRU3939	2T2R	1800	GSM,LTE ((FDD),GL,LM,GLM	RRU3939
RRU3942	2T4R	850	GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3942
		1900
RRU3952	2T4R	850	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM	RRU3952
		2100
RRU3952m	2T4R	1800+2100	1800MHz:GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL)	RRU3952m
		2100+1800	2100MHz:UMTS,LTE ((FDD),UL
RRU3953	2T4R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3953
		1800
		1900
		2100
RRU3953w	2T4R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3953w
RRU3958	2T2R	2100	UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL)	RRU3958
RRU3959	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959
		1800
		2100
RRU3959a	2T2R	900	GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM	RRU3959a
		1800
		2100
RRU3959w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL)	RRU3959w
RRU3961	2T2R	800+900EGSM	800MHz:LTE (FDD),LTE (NB-IoT),LM	RRU3961
			900 EGSM:GSM,UMTS,GU
			800MHz+900 EGSM:GL,UL,GUL
RRU3962	2T4R	1800+2100		RRU3962
			1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL)
			2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL)
			1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL)
RRU3965	2T2R	800+900EGSM	800MHz:LTE (FDD),LM,LN (SUL)	RRU3965
			900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM
			800MHz+900 EGSM:LTE (FDD),GL,UL,GUL,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL)
RUR3971	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RUR3971
		1900
		AWS
		2100
RRU3971a	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL)	RRU3971a


표 2 5000 시리즈 RRU
RRU 모델	XTXR	주파수 대역 (MHz)	지원된 RAT	장치 매개 변수
RRU5251	4T4R	2300	LTE (TDD)	RRU5251
RRU5254	8T8R	2600	LTE (TDD), NR (TDD)	RRU5254
	4T4R	2300+2600	LTE (TDD),NR (TDD),TN (TDD)
RRU5258	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5258
		2600
		3500
		3650
		3700
RRU5301	4T4R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5301
	4T0R	1400	LTE (FDD)
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5304	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)	RRU5304
RRU5304w	4T4R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5304w
	4T4R	2600	LTE (FDD),NR (FDD),LN (FDD)
RRU5305	2T0R	1400	LTE (FDD)	RRU5305
RRU5308	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5308
RRU5309	2T2R	700	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309
		800
RRU5309w	2T2R	800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5309w
RRU5336E	4T4R	2600	LTE (FDD)	RRU5336E
RRU5501	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5501
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),GL,UL,GUL,LM,GLM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLM (FDD),GULM (FDD)
RRU5502	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD)
RRU5502N	4T4R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5502N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5502w	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5502w
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5505
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5505N	2T2R	1800+2100	1800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5505N
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE (FDD),UL,LM,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD),LMN (FDD),ULM (FDD)
RRU5507	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5507
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5508	2T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5508
			850MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),LN (FDD),GN (FDD),UN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	2T4R	1800+2100	1800MHz:LTE (FDD),GL,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD)
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD
RR5509t	2T4R	700+800+900	800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5509t
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULN(FDD),GULN(FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5512	4T4R	700+850	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5512
			850MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+850MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),GULN (SUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL),FDD),GUL (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
	4T4R	700+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (GUL),NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN ((FDD)GULMN FDD
RR5512t	4T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RR5512t
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5513	4T4R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLM (FDD)	RRU5513
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD)
RRU5513t	4T4R	1800+2100+2600	1800MHz:LTE (FDD),GL,NR (FDD),GN (FDD),LN (SUL),GLN (SUL),LN (FDD),GLN (FDD),LM (FDD),GLM (FDD),LM (FDD),GLM (FDD)	RRU5513t
			2100MHz:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
			2600MHz:LTE (FDD),NR (FDD),LN (FDD)
RRU5513w	4T4R	AWS+PCS	AWS:UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)	RRU5513w
			PCS:UMTS,LTE (FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),LMN (FDD),GLMN (FDD)
			AWS+PCS:UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD),GULMN(FDD)
RRU5515t	2T2R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5515t
			800MHz:LTE (FDD),LM,LN (SUL)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5519et	2T4R	700+800+900	700MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5519et
			800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			900MHz:GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
			700MHz+800MHz:LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)
			700MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),GULN (SUL),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLMN (FDD),ULMN (FDD),GULMN (FDD)
			800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (ULN),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLM (FDD),ULM (FDD),GULM (FDD)
			700MHz+800MHz+900MHz:LTE (FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN (SUL),GLN (SUL),ULN (SUL),GULN (SUL),NR (FDD),LN (FDD),GLN (FDD),ULN (FDD),GULN (FDD),MN (FDD),GMN (FDD),UMN (FDD),LMN (FDD),GLN (FDD),ULM (FDD),GULMN ((FDD)
RRU5810	8T8R	3600	LTE (TDD),NR (TDD),TN (TDD)	RRU5810
RRU5818	8T8R	2300	LTE (TDD),NR (TDD),TN (TDD)	RRU5818
	8T8R	2600	LTE (TDD)
	8T8R	3500	LTE (TDD),NR (TDD),TN (TDD)
RRU5836E	4T4R	3500	LTE (TDD), NR (TDD)	RRU5836E
		3700
RRU5862	1800MHz:	1800+2100	1800MHz:LTE ((FDD),GL,LM,GLM	RRU5862
	GSM: 4T4R		2100MHz:UMTS,LTE ((FDD),UL
	LTE (FDD): 8T8R		1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM
	2100MHz:
	UMTS: 2T4R
	LTE (FDD): 8T8R
RRU5901	4T4R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5901
	4T4R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
		AWS	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5901N	4T4R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5901N
RRU5901W	4T4R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5901W
RRU5903	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD)	RRU5903
	2T4R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD)
	2T4R	1900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,UM,LM,ULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD)
RRU5903w	2T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5903w
RRU5904	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),LMN (FDD)	RRU5904
	4T4R	2100	UMTS,LTE (FDD),UL,ULM,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5904N	4T4R	1800	LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD)	RRU5904N
RRU5904w	4T4R	850	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),UM (FDD),GLM (FDD)	RRU5904w
	4T4R	1800	GSM,LTE (FDD),GL,LTE (NB-IoT),GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),MN (FDD),GMN (FDD),LMN (FDD),GLM (FDD)
	4T4R	1900	UMTS,LTE (FDD),GU,GL,UL,GUL,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),UL (UL))
RRU5905	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)	RRU5905
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5905w	2T2R	1800	GSM,LTE (FDD),GL,GM,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)	RRU5905w
RRU5909	2T2R	700	LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LM (FDD)	RRU5909
	2T2R	900	GSM,UMTS,LTE (FDD),GU,GL,UL,GUL,LTE (NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR (FDD),GN (FDD),UN (FDD),LN (FDD),GUN (FDD),GLN (FDD),ULN (FDD),MN (FDD),GMN (FDD),UMN (FDD)
	2T2R	1800	GSM,LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LM (FDD)
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5909N	2T2R	1800	LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD)	RRU5909N
RRU5909s	2T2R	1800	LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD)	RRU5909s
	2T2R	2100	UMTS,LTE (FDD),UL,LN (SUL),ULN (SUL),NR (FDD),UN (FDD),LN (FDD),ULN (FDD)
RRU5935E	2T2R	1800+2100	1800MHz:LTE (FDD),GL,LM,GLM,NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD),GLMN (FDD)	RRU5935E
